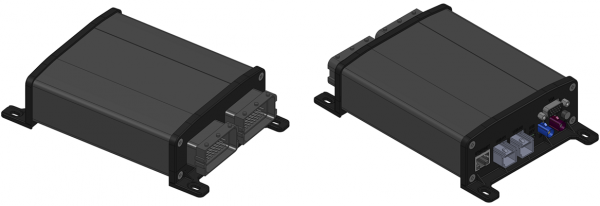

AUTOMOTIVE COMPUTER is a programmable computer for industrial
and automotive applications. Integrated video and graphics
acceleration make it suitable for digital video recorders, computer
vision and video surveillance applications.
It includes a full set of automotive interfaces, such as CAN buses,
RS232, RS485, Fast Ethernet, Tachometer, Battery and Ignition
Sensing.
SSD and uSD Card slots provide the storage needed for data and
video recorders. Wifi, Bluetooth and 3G/4G modules provide the
hardware needed for state-of-art connected cars. All connectors
are industry standards for automotive applications. Operating from
the wide range of 9V to 32V makes it suitable for all automotive
environments, from small cars to heavy trucks and buses
| 9V to 32V Input Power | RPM Sensing |
| Microphone Input | Micro SD Card |
| Stereo Audio Output | 2x USB Host (Power Charge) |
| 24 Mbps Wifi | USB Device |
| Bluetooth 4.0 + BLE | 3x RS232 |
| Fast Ethernet | 1x RS485 |
| GNSS + Dead | Car Battery Sensing |
| Reckoning | |
| 3G Modem + Dual SIM | |
| CAN Bus | i.MX6 Ultra Lite |
| 3D Accelerometer | TC-IMX6G0104-C |
| 3D Gyroscope | |
| 3D e-Compass | Linux Compatible |
| VGA output | Android Compatible |
| 1x Analog Input | |
| 9x Digital Inputs | |
| Ignition Input | |
| 4x Digital Outputs | |
| One Wire Input | |
| Speed Sensing |
SATA SSD drives and micro SD Cards are available upon request and will be included and tested in the products in our assembly line.
AUTOMOTIVE COMPUTER is a programmable computer for industrial
and automotive applications. Integrated video and graphics
acceleration make it suitable for digital video recorders, computer
vision and video surveillance applications.
It includes a full set of automotive interfaces, such as CAN buses,
RS232, RS485, Fast Ethernet, Tachometer, Battery and Ignition
Sensing.
SSD and uSD Card slots provide the storage needed for data and
video recorders. Wifi, Bluetooth and 3G/4G modules provide the
hardware needed for state-of-art connected cars. All connectors
are industry standards for automotive applications. Operating from
the wide range of 9V to 32V makes it suitable for all automotive
environments, from small cars to heavy trucks and buses.
| 9V to 32V Input Power | RPM Sensing |
| Microphone Input | Micro SD Card |
| Stereo Audio Output | 2x USB Host (Power Charge) |
| 24 Mbps Wifi | USB Device |
| Bluetooth 4.0 + BLE | 3x RS232 |
| Fast Ethernet | 1x RS485 |
| GNSS + Dead | Car Battery Sensing |
| Reckoning | |
| 3G Modem + Dual SIM | 4x Analog Cameras |
| CAN Bus | |
| 3D Accelerometer | i.MX6 Dual Lite |
| 3D Gyroscope | TC-IMX6U0204-C |
| 3D e-Compass | |
| VGA output | Linux Compatible |
| 1x Analog Input | Android Compatible |
| 9x Digital Inputs | |
| Ignition Input | |
| 4x Digital Outputs | |
| One Wire Input | |
| Speed Sensing |
SATA SSD drives and micro SD Cards are available upon request and will be included and tested in the products in our assembly line.
AUTOMOTIVE COMPUTER is a programmable computer for industrial
and automotive applications. Integrated video and graphics
acceleration make it suitable for digital video recorders, computer
vision and video surveillance applications.
It includes a full set of automotive interfaces, such as CAN buses,
RS232, RS485, Fast Ethernet, Tachometer, Battery and Ignition
Sensing.
SSD and uSD Card slots provide the storage needed for data and
video recorders. Wifi, Bluetooth and 3G/4G modules provide the
hardware needed for state-of-art connected cars. All connectors
are industry standards for automotive applications. Operating from
the wide range of 9V to 32V makes it suitable for all automotive
environments, from small cars to heavy trucks and buses.
| 9V to 32V Input Power | RPM Sensing |
| Microphone Input | Micro SD Card |
| Stereo Audio Output | 2x USB Host (Power Charge) |
| 300 Mbps Wifi | |
| Bluetooth 4.0 + BLE | USB Device |
| Fast Ethernet | 3x RS232 |
| GNSS + Dead | 1x RS485 |
| Reckoning | Car Battery Sensing |
| 4G Modem + Dual SIM | 4x Analog Cameras |
| CAN Bus | SATA Interface |
| 3D Accelerometer | |
| 3D Gyroscope | i.MX6 Quad Smart |
| 3D e-Compass | TC-IMX6Q0204-C |
| VGA output | |
| 1x Analog Input | Linux Compatible |
| 9x Digital Inputs | Android Compatible |
| Ignition Input | |
| 4x Digital Outputs | |
| One Wire Input | |
| Speed Sensing |
SATA SSD drives and micro SD Cards are available upon request and will be included and tested in the products in our assembly line.
