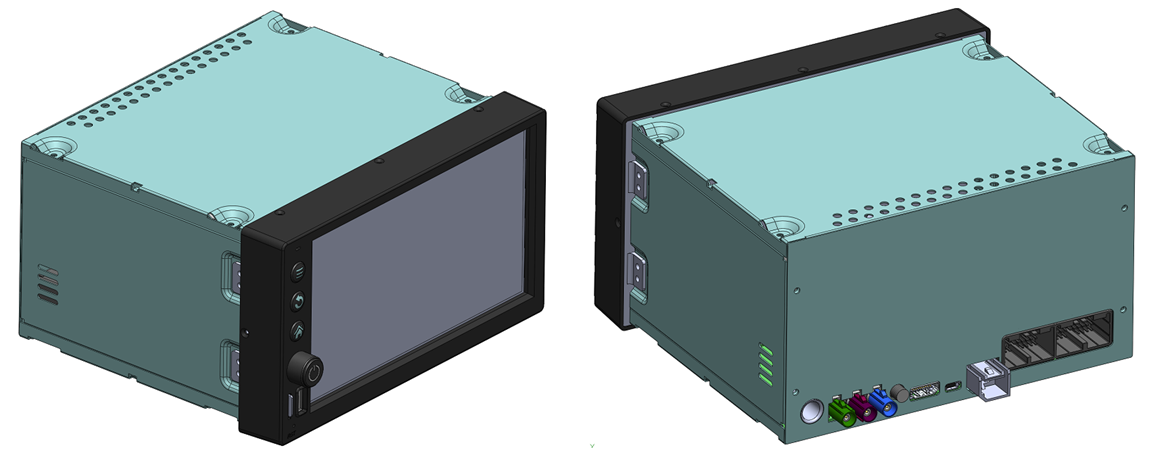

AUTOMOTIVE INFOTAINMENT is a programmable computer for
automotive infotainment, navigation and telematics applications.
Integrated video and graphics acceleration give the performance
needed for high resolution video playback and runtime maps
rendering.
A full set of entertainment features includes AM/FM radio, Digital
TV and HDMI output. The audio system has been carefully designed:
four 20W amplified output channels can be connected directly to
4Ω speakers, while three extra analog channels can be connected to
external amplifiers.
It includes a full set of automotive interfaces for telematics.
| 9V to 32V Input Power | GNSS + Dead Reckoning |
| 4 Channels 20W Audio | HDMI output |
| 3 Channels Analog Audio | Speed Sensing |
| AM/FM Radio | RPM Sensing |
| Wifi 2.4GHz 24Mbps | Wheel Buttons Input |
| Bluetooth 4.0 + BLE | Micro SD Card |
| 7” Display 800 x 480 | 2x USB Host (Power Charge) |
| Light Sensor | USB OTG |
| 3D Accelerometer | RS232 |
| 3D Gyroscope | Car Battery Sensing |
| 3D e-Compass | Built-in Microphone |
| Rear Camera Input | |
| AV Input | ISDB-T 1-Seg DTV |
| 2x CAN Bus | TC-IMX6U0204-C |
| Reverse Input | |
| Parking Input | Linux Compatible |
| Cluster Lamp Input | Android Compatible |
| Ignition Input |
AUTOMOTIVE INFOTAINMENT is a programmable computer for
automotive infotainment, navigation and telematics applications.
Integrated video and graphics acceleration give the performance
needed for high resolution video playback and runtime maps
rendering.
A full set of entertainment features includes AM/FM radio, Digital
TV and HDMI output. The audio system has been carefully designed:
four 20W amplified output channels can be connected directly to
4Ω speakers, while three extra analog channels can be connected to
external amplifiers.
It includes a full set of automotive interfaces for telematics.
| AM/FM Radio | RPM Sensing |
| Wifi 2.4GHz 24Mbps | Wheel Buttons Input |
| Bluetooth 4.0 + BLE | Micro SD Card |
| 7” Display 800 x 480 | 2x USB Host (Power Charge) |
| Light Sensor | USB OTG |
| 3D Accelerometer | RS232 |
| 3D Gyroscope | Car Battery Sensing |
| 3D e-Compass | Built-in Microphone |
| Rear Camera Input | |
| AV Input | 3G Modem + Single SIM |
| 2x CAN Bus | TC-IMX6U0204-C |
| Reverse Input | |
| Parking Input | Linux Compatible |
| Cluster Lamp Input | Android Compatible |
| Ignition Input |
