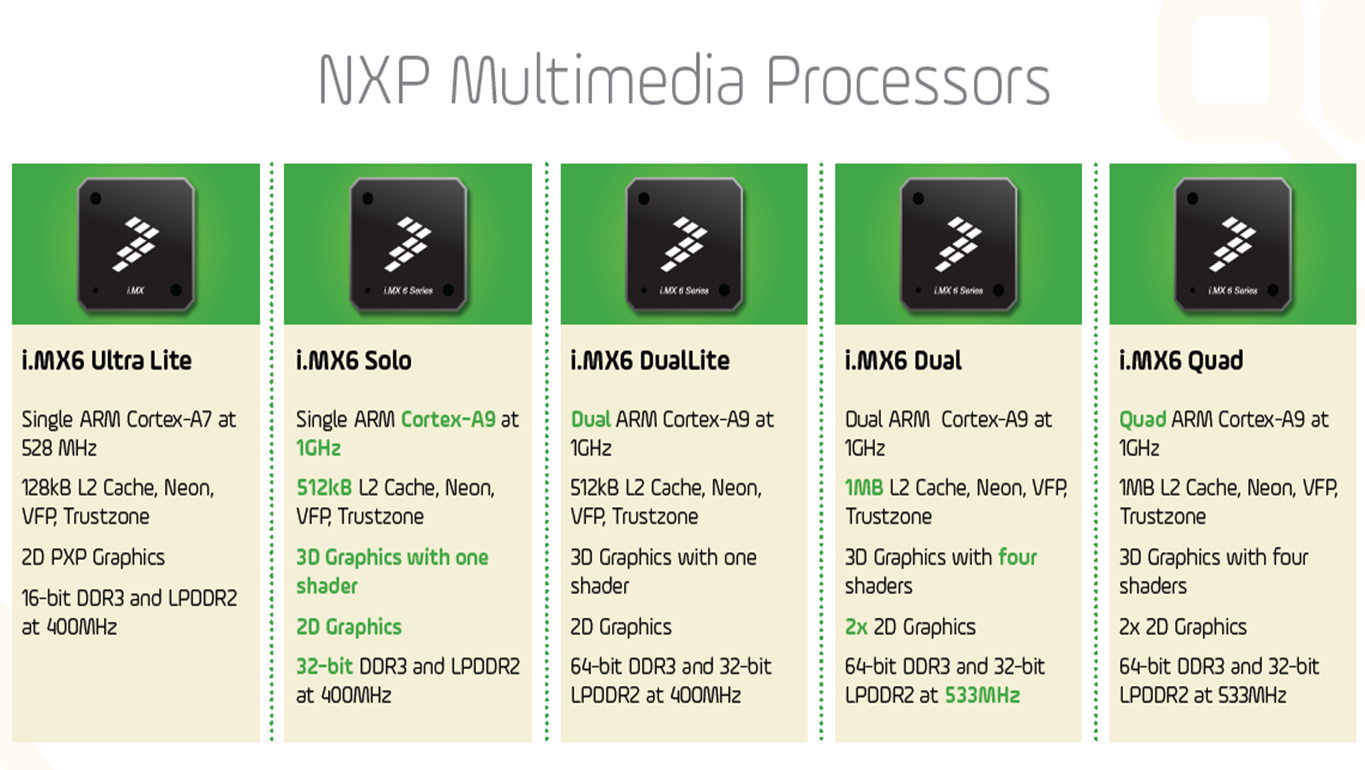

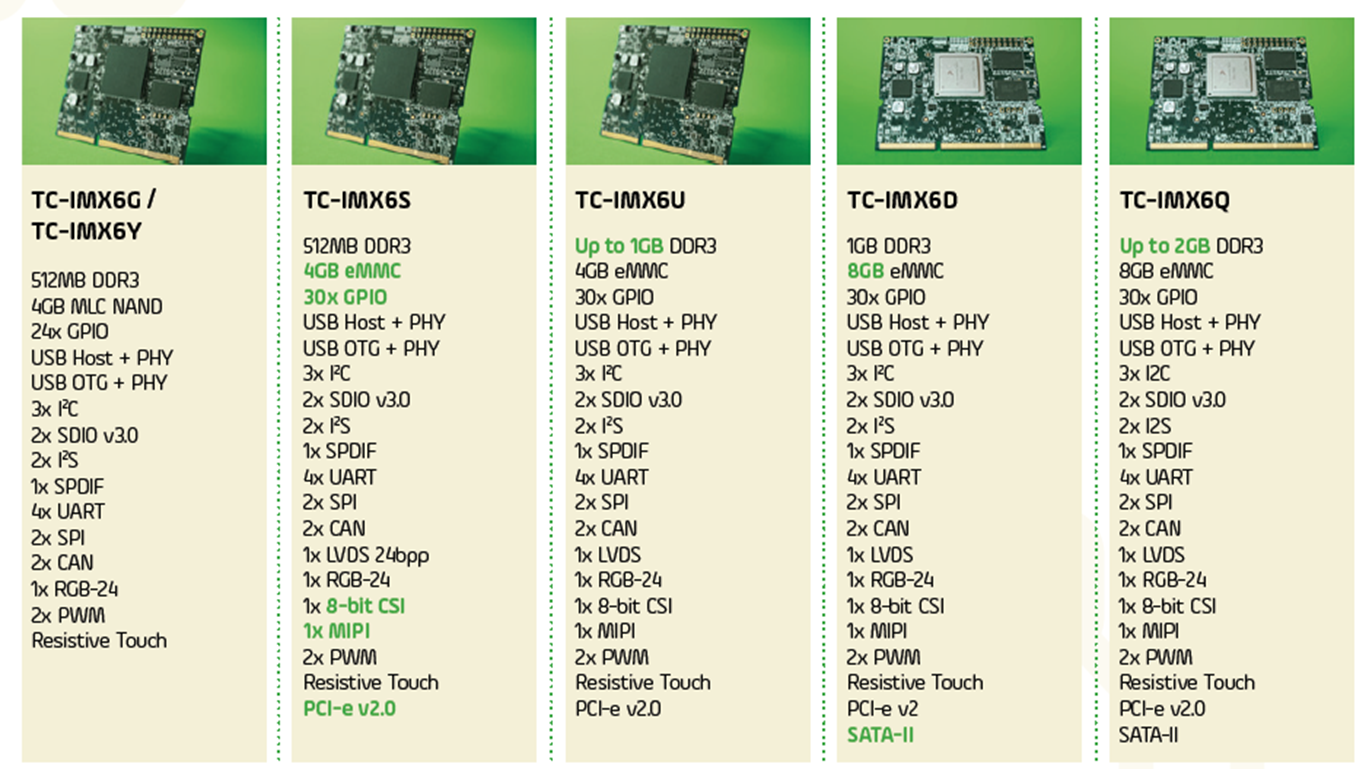

- Selection Guide
-
DATASHEETCPU CPU Name i.MX6 Ultra Lite or i.MX6 Ultra Lite “L” CPU Type ARM Cortex-A7 Multicore Single Core CPU clock 528MHz Floating Point Unit VFPv3 NEON Yes L1 Instruction Cache 1x 32kB L1 Data Cache 1x 32kB L2 Cache 128kB MEMORY RAM 512MB MLC NAND Flash 4GB CONNECTIVITY PCI-e N/A USB OTG 2.0 + PHY 1x USB Host 2.0 + PHY 1x I2C 3x SPI 2x UART 4x PWM 2x GPIO 23x SATA-II N/A SDIO/SD/MMC 2x 4-bit CAN 2x MULTIMIDIA LVDS N/A RGB 24 bpp 2D Graphics 1x PXP 2D Accelerator 3D Graphics N/A Digital Audio I2S, S/PDIF OUT Resistive Tocuh 4-wire Camera Parallel Interface N/A Camera Serial Interface N/A OPERATION SYSTEM Android N/A Yocto Krogoth 2.1.1 Linux 4.1.15 Software Compatibility Same BSP for all i.MX6x modules PHYSICAL Dimensions 67.6 x 51.5 x 1.0 mm Consumer Temperature (-C) from 0C to +85C Extended Temperature (-E) from -20C to +85C Pinout Same SODIMM-204 bus for all i.MX modules -
DATASHEET
CPU CPU Name i.MX6 Solo CPU Type ARM Cortex-A9 Multicore Single Core CPU clock 1GHz Floating Point Unit VFPv3 NEON Yes L1 Instruction Cache 1x 32kB L1 Data Cache 1x 32kB L2 Cache 512kB MEMORY RAM 512MB eMMC 4GB CONNECTIVITY PCI-e 1x USB OTG 2.0 + PHY 1x USB Host 2.0 + PHY 1x I2C 3x SPI 2x UART 4x PWM 2x GPIO 30x SATA-II N/A SDIO/SD/MMC 2x 4-bit CAN 2x MULTIMIDIA LVDS 4-ch 24bpp RGB 24 bpp 2D Graphics 1x 3D Graphics 1x shader Digital Audio I2S, PCM, S/PDIF OUT Resistive Tocuh 4-wire Camera Parallel Interface 8 bits Camera Serial Interface 1x Four Lanes OPERATION SYSTEM Android 5.1.1 Lollipop Yocto Krogoth 2.1.1 Linux 4.1.15 Software Compatibility Same BSP for all i.MX6x modules PHYSICAL Dimensions 67.6 x 51.5 x 1.0 mm Consumer Temperature (-C) from 0C to +85C Extended Temperature (-E) from -20C to +85C Pinout Same SODIMM-204 bus for all i.MX modules -
DATASHEET
CPU CPU Name i.MX6 Dual Lite CPU Type ARM Cortex-A9 Multicore Dual Core CPU clock 1GHz Floating Point Unit VFPv3 NEON Yes L1 Instruction Cache 2x 32kB L1 Data Cache 2x 32kB L2 Cache 512kB MEMORY RAM 512MB eMMC 4GB CONNECTIVITY PCI-e 1x USB OTG 2.0 + PHY 1x USB Host 2.0 + PHY 1x I2C 3x SPI 2x UART 4x PWM 2x GPIO 30x SATA-II N/A SDIO/SD/MMC 2x 4-bits CAN 2x MULTIMIDIA LVDS 4-ch 24bpp RGB 24 bpp 2D Graphics 1x 3D Graphics 1x shader Digital Audio I2S, PCM, S/PDIF OUT Resistive Tocuh 4-wire Camera Parallel Interface 8 bits Camera Serial Interface 1x Four Lanes OPERATION SYSTEM Android 5.1.1 Lollipop Yocto Krogoth 2.1.1 Linux 4.1.15 Software Compatibility Same BSP for all i.MX6x modules PHYSICAL Dimensions 67.6 x 51.5 x 1.0 mm Consumer Temperature (-C) from 0C to +85C Extended Temperature (-E) from -20C to +85C Pinout Same SODIMM-204 bus for all i.MX modules -
DATASHEET
CPU CPU Name i.MX6 Dual Lite CPU Type ARM Cortex-A9 Multicore Dual Core CPU clock 1GHz Floating Point Unit VFPv3 NEON Yes L1 Instruction Cache 2x 32kB L1 Data Cache 2x 32kB L2 Cache 512kB MEMORY RAM 1GB eMMC 4GB CONNECTIVITY PCI-e 1x USB OTG 2.0 + PHY 1x USB Host 2.0 + PHY 1x I2C 3x SPI 2x UART 4x PWM 2x GPIO 30x SATA-II N/A SDIO/SD/MMC 2x 4-bits CAN 2x MULTIMIDIA LVDS 4-ch 24bpp RGB 24 bpp 2D Graphics 1x 3D Graphics 1x shader Digital Audio I2S, PCM, S/PDIF OUT Resistive Tocuh 4-wire Camera Parallel Interface 8 bits Camera Serial Interface 1x Four Lanes OPERATION SYSTEM Android 5.1.1 Lollipop Yocto Krogoth 2.1.1 Linux 4.1.15 Software Compatibility Same BSP for all i.MX6x modules PHYSICAL Dimensions 67.6 x 51.5 x 1.0 mm Consumer Temperature (-C) from 0C to +85C Extended Temperature (-E) from -20C to +85C Pinout Same SODIMM-204 bus for all i.MX modules -
DATASHEETCPU CPU Name i.MX6 Dual CPU Type ARM Cortex-A9 Multicore Dual Core CPU clock 1GHz Floating Point Unit VFPv3 NEON Yes L1 Instruction Cache 2x 32kB L1 Data Cache 2x 32kB L2 Cache 1MB MEMORY RAM 1GB eMMC 8GB CONNECTIVITY PCI-e 1x USB OTG 2.0 + PHY 1x USB Host 2.0 + PHY 1x I2C 3x SPI 2x UART 4x PWM 2x GPIO 30x SATA-II 1x SDIO/SD/MMC 2x 4-bits CAN 2x MULTIMIDIA LVDS 4-ch 24bpp RGB 24 bpp 2D Graphics 2x 3D Graphics 4x shaders Digital Audio I2S, PCM, S/PDIF OUT Resistive Tocuh 4-wire Camera Parallel Interface 8 bits Camera Serial Interface 1x Four Lanes OPERATION SYSTEM Android 5.1.1 Lollipop Yocto Krogoth 2.1.1 Linux 4.1.15 Software Compatibility Same BSP for all i.MX6x modules PHYSICAL Dimensions 67.6 x 51.5 x 1.0 mm Consumer Temperature (-C) from 0C to +85C Extended Temperature (-E) from -20C to +85C Pinout Same SODIMM-204 bus for all i.MX modules -
DATASHEETCPU CPU Name i.MX6 Quad CPU Type ARM Cortex-A9 Multicore Single Core CPU clock 1GHz Floating Point Unit VFPv3 NEON Yes L1 Instruction Cache 4x 32kB L1 Data Cache 4x 32kB L2 Cache 1MB MEMORY RAM 1GB eMMC 4GB CONNECTIVITY PCI-e 1x USB OTG 2.0 + PHY 1x USB Host 2.0 + PHY 1x I2C 3x SPI 2x UART 4x PWM 2x GPIO 30x SATA-II 1x SDIO/SD/MMC 2x 4-bits CAN 2x MULTIMIDIA LVDS 4-ch 24bpp RGB 24 bpp 2D Graphics 2x 3D Graphics 4x shaders Digital Audio I2S, PCM, S/PDIF OUT Resistive Tocuh 4-wire Camera Parallel Interface 8 bits Camera Serial Interface 1x Four Lanes OPERATION SYSTEM Android 5.1.1 Lollipop Yocto Krogoth 2.1.1 Linux 4.1.15 Software Compatibility Same BSP for all i.MX6x modules PHYSICAL Dimensions 67.6 x 51.5 x 1.0 mm Consumer Temperature (-C) from 0C to +85C Extended Temperature (-E) from -20C to +85C Pinout Same SODIMM-204 bus for all i.MX modules -
DATASHEETCPU CPU Name i.MX6 Quad CPU Type ARM Cortex-A9 Multicore Single Core CPU clock 1GHz Floating Point Unit VFPv3 NEON Yes L1 Instruction Cache 4x 32kB L1 Data Cache 4x 32kB L2 Cache 1MB MEMORY RAM 2GB eMMC 4GB CONNECTIVITY PCI-e 1x USB OTG 2.0 + PHY 1x USB Host 2.0 + PHY 1x I2C 3x SPI 2x UART 4x PWM 2x GPIO 30x SATA-II 1x SDIO/SD/MMC 2x 4-bits CAN 2x MULTIMIDIA LVDS 4-ch 24bpp RGB 24 bpp 2D Graphics 2x 3D Graphics 4x shaders Digital Audio I2S, PCM, S/PDIF OUT Resistive Tocuh 4-wire Camera Parallel Interface 8 bits Camera Serial Interface 1x Four Lanes OPERATION SYSTEM Android 5.1.1 Lollipop Yocto Krogoth 2.1.1 Linux 4.1.15 Software Compatibility Same BSP for all i.MX6x modules PHYSICAL Dimensions 67.6 x 51.5 x 1.0 mm Consumer Temperature (-C) from 0C to +85C Extended Temperature (-E) from -20C to +85C Pinout Same SODIMM-204 bus for all i.MX modules -
